TECHNICAL SPECIFICATIONS

Reject Accuracy:

1/64" Max. (0.4 mm Max.)

Margin Inhibit Range:

0.5 to 1.5% of Sheet Length

Maximum Web Speed:

Depending on Application

Input:

9-12 VDC Pulse

Outputs:

2.0 Amp at 20 VDC
5.0 Amp DPDT Relay Contacts
10 Amp DPDT Relay Contacts
Optional

Mounting:

    Electronics:
    Pulse Generator:

Rack Mounted
Machine Mounted Near Knife
Timing Belt Driven

Ambient Temperature:

40 to 160° F (4 to 70° C)

Power:

110/220/240 VAC
50/60 Hz
Single Phase
50 Watts

Specifications are subject to change without notice.

Sheeter Web Inspection and Splice DetectionAutomate Inspection Operations:

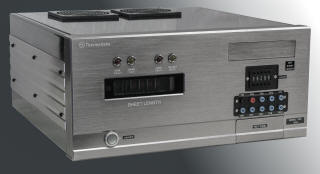

The Abolisher® Reject Gate Control™ Technology interfaces with a any machine vision web inspection, hole detection, defect fault detection, splice detection, watermark registration technology.  Our Abolisher® Reject Gate Control™ Technology will provide web based manufacturers the ability to automate their quality and sorting initiatives.  The Abolisher® Reject Gate Control™ Technology is well suited to new and older sheeting systems and is designed for quick and easy installation.  Choose our Abolisher® Reject Gate Control™ Technology for faster, more reliable, control of delivered product quality.



Ensure Accurate Results:

A "Pulsation Initiator", combined with the innovative electronic processing technologies, makes it feasible for full sheet and fractional sheet determination between the machine vision inspection solution and the sheeter reject gate systems.  Since the "Pulsation Initiator" is machine drive shaft driven, system accuracy is not speed dependent.



Sheeter Web Inspection and Splice Detection

Sheeter Web Inspection and Splice Detection



Process Multiple Products:

The Abolisher® Reject Gate Control™ Technology is designed to ensure that only material with defects are rejected. It can be used to process multiple products of differing lengths through front panel switching technology.  A margin inhibit system is used to disengage the reject mechanism when a defect falls within 1/4" (6.35 mm) of the cut line (i.e., within a margin which will be trimmed later).  If a large defect occurs that spans multiple sheets, the unit ensures that all defective sheets are rejected.



Indonesia

Installation

Indonesia

Installation

Indonesia

Installation

Indonesia

Installation

Indonesia

Installation

Test Station

State of the Art

Processing

Proprietary

Digital Circuitry

State of the Art

Encoder

Reliable

Rack Construction



Sheeter Web Inspection and Splice DetectionSelect An Integrated System:

The Abolisher® Reject Gate Control™ Technology can be combined with any machine vision web inspection technology, splice detection technology or watermark registration technology.  Our Abolisher® Reject Gate Control™ Technology will form an integrated, single source, solution for your cutting, sorting and inspection initiatives. The Abolisher® Reject Gate Control™ Technology can quickly and easily be applied to any current or past machine vision technology provided by R.K.B to meet today's diverse quality control needs.  We provide expert design, system integration, installation and support to ensure success with your project.



Sheeter Web Inspection and Splice Detection

Sheeter Web Inspection and Splice Detection

Sheeter Web Inspection and Splice Detection

Sheeter Web Inspection and Splice Detection

Sheeter Web Inspection and Splice Detection

RKB Model 3600

RKB Model 2060

RKB Model 2084

RKB Model 3020

RKB Model 3040



Call SDS:

Call us today to discuss your control applications and to learn more about the industry's most complete line of machine vision web inspection, hole detection, splice detection and control products.
