TECHNICAL SPECIFICATIONS |
|
Registration Accuracy: |
1/16"
(1.5 mm) or Less
From Registration Mark |
|
Marks
Detected: |
Non-Keyed Watermarks
Keyed Watermarks
Printed Watermarks
Other Marks Subject to Tests |
|
Maximum
Web Speed: |
Depending on Application |
|
Dimensions: |
Rack
Mounted |
|
Material Color Range: |
Subject
to Tests |
|
Material Color Range: |
Subject
to Tests |
|
Illumination: |
Proprietary |
|
Ambient
Temperature: |
40 to
160° F (4 to 70° C) |
|
Power:
|
110/220/240 VAC
50/60 Hz
Single Phase |
|
Specifications are subject to change without notice.
Note:
The Register Control System supplies all necessary
electronics and controls with the exception of the
double differential in the drive of the rotary
knife. The double differential is supplied by the
cutter manufacturer. |
Ensure Material
Registration:
The Model 1108 Keymark® Register
Control™ Technology
is designed for integration with existing production equipment to
ensure in-register processing of web materials. It is suitable for
many types of processing, printing, and converting applications
requiring material registration or similar process controls.
 Detect Any Mark:
The most important aspect of
the Model 1108 Keymark® Register Control™ Technology is reliable detection of the "Registration
Mark." Our Model 1108 Keymark® Register Control™ Technology is compatible with a wide
range of illumination, sensing, and signal processing technologies
for detection of any type of mark including keyed, non-keyed,
watermarks; printed and non-printed watermarks.
Improve Delivered
Quality:
The
Model 1108 Keymark® Register Control™
Technology
can help your company improve product quality by automatically
controlling material registration within customer specifications.
Choose our
Model 1108 Keymark® Register Control™
Technology for faster, more
reliable, control of the delivered quality of your products.
 Reduce Costs:
Our Model 1108 Keymark® Register
Control™ Technology
will help you to significantly reduce your company's costs for
producing, sorting, and disposing of mis-registered products. They
can also help to reduce costs for machine downtime and customer
returns.
Achieve High Speed
Operation:
A
pulse generator, combined with our illumination, sensing, and signal
processing technologies, ensures that registration accuracy is
maintained throughout the process at any process speed. Since the
pulse generator is integrated with a machine driven shaft,
registration accuracy is not speed dependent.
|
 |
 |
|

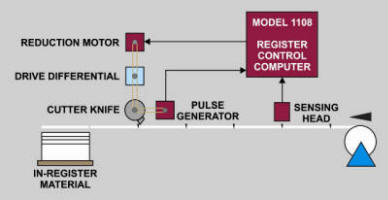

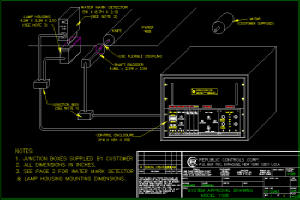

Block
Diagram of Detection |
Watermark
Securities |
|
 |
 |
 |
 |
|
Watermark
Detector |
Watermark
Detector |
Lamp
Sensing Assembly |
Lamp
Sensing Assembly |
Call SDS:
Call us today
to discuss your metalized splice detection application and to learn
more about the industry's most complete line of web inspection
related products.
[
TOP PAGE ]
|
